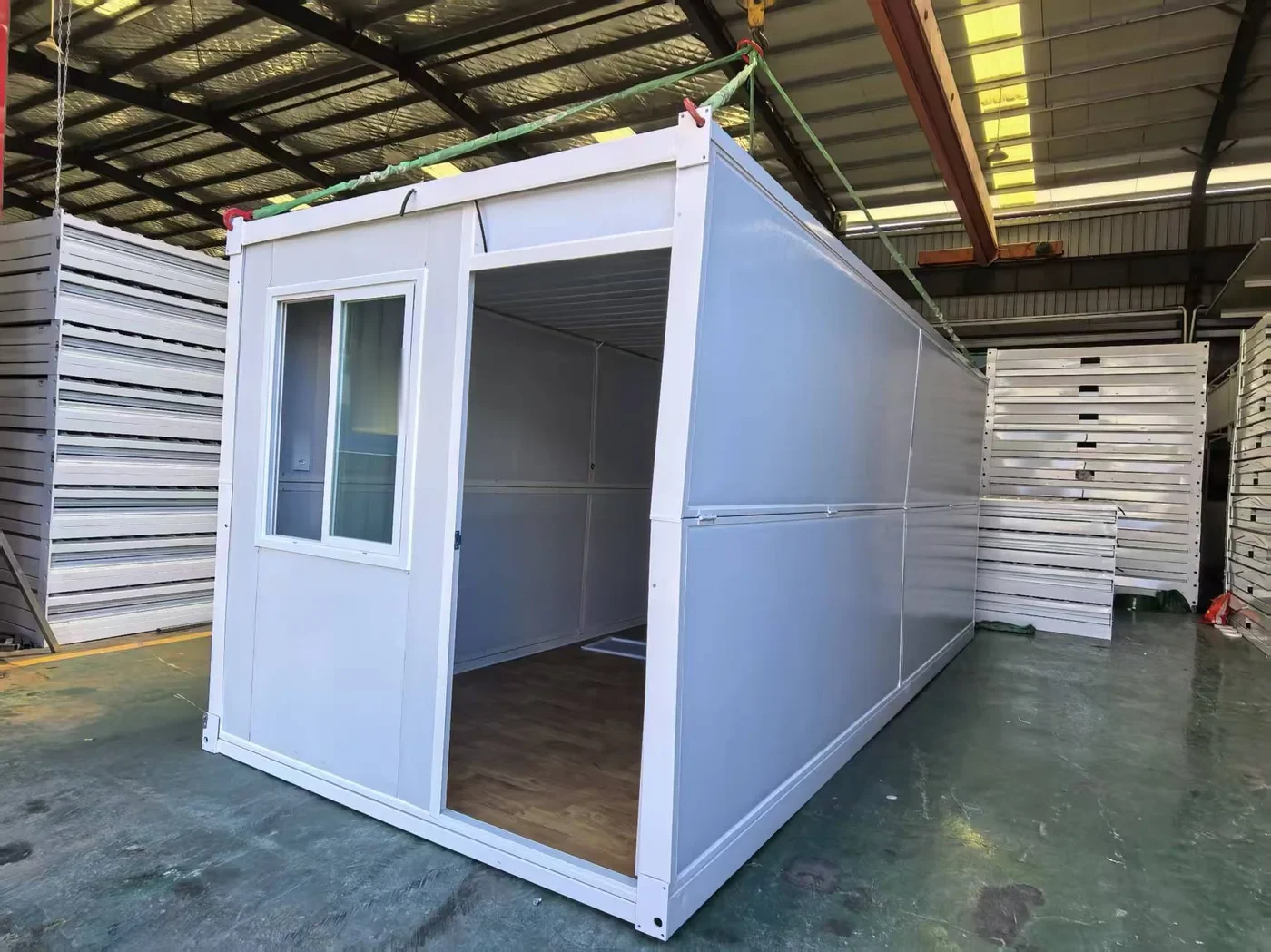

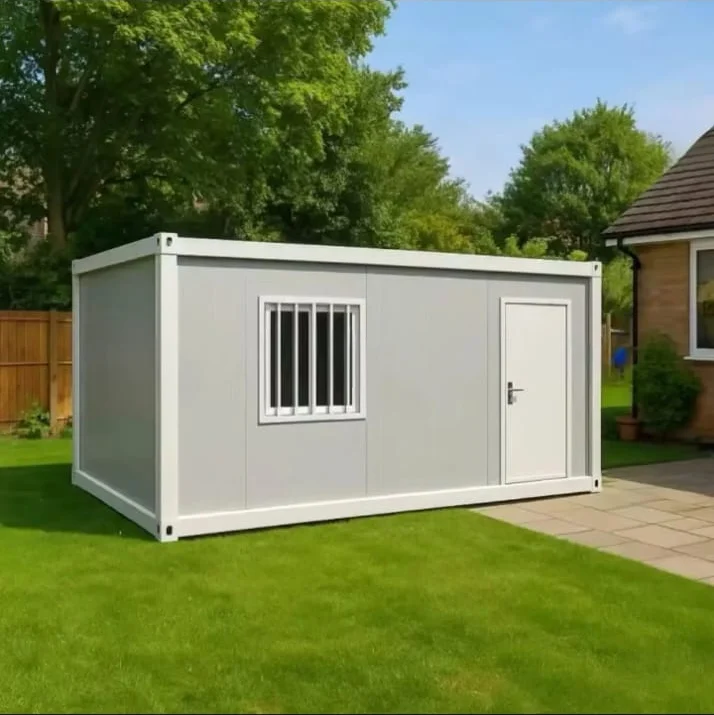

Folding container cabin — opens in minutes, folds flat to move again

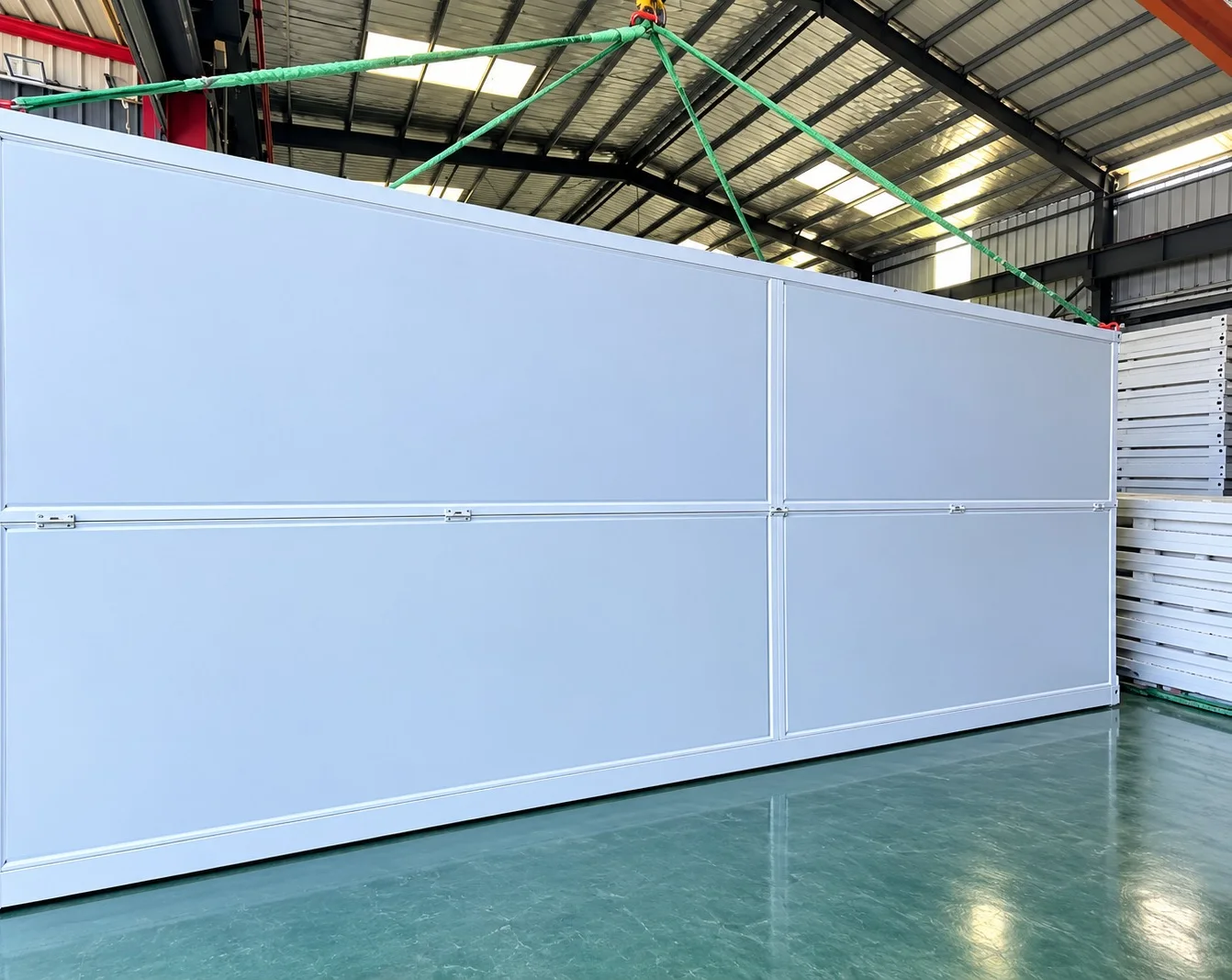

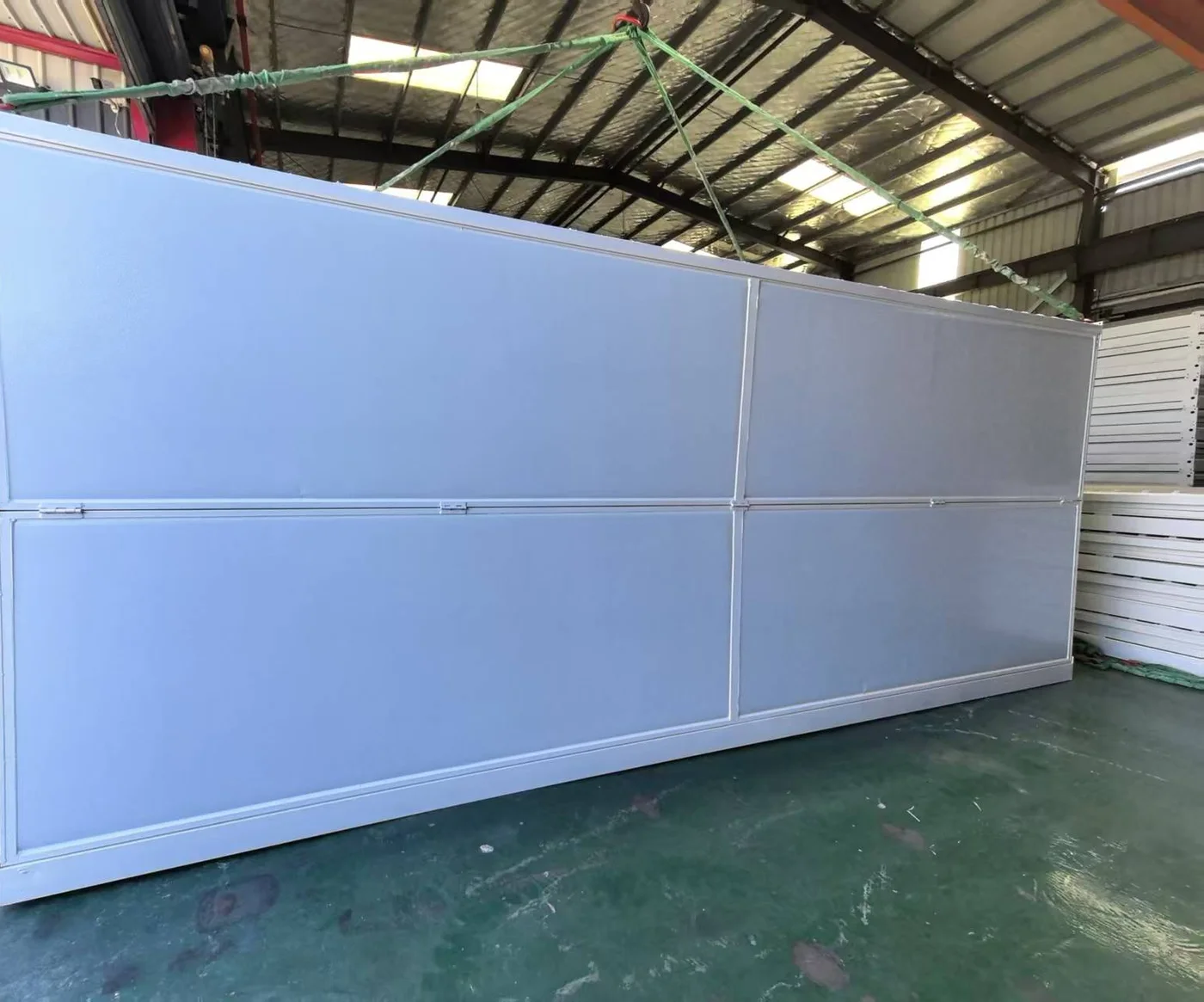

This is a fully folding PUF sandwich panel cabin, 20 ft × 8 ft. It arrives folded, opens out on site, and can be folded back down and shifted to the next location whenever the site changes. Nothing is cut or welded on site.
What it is

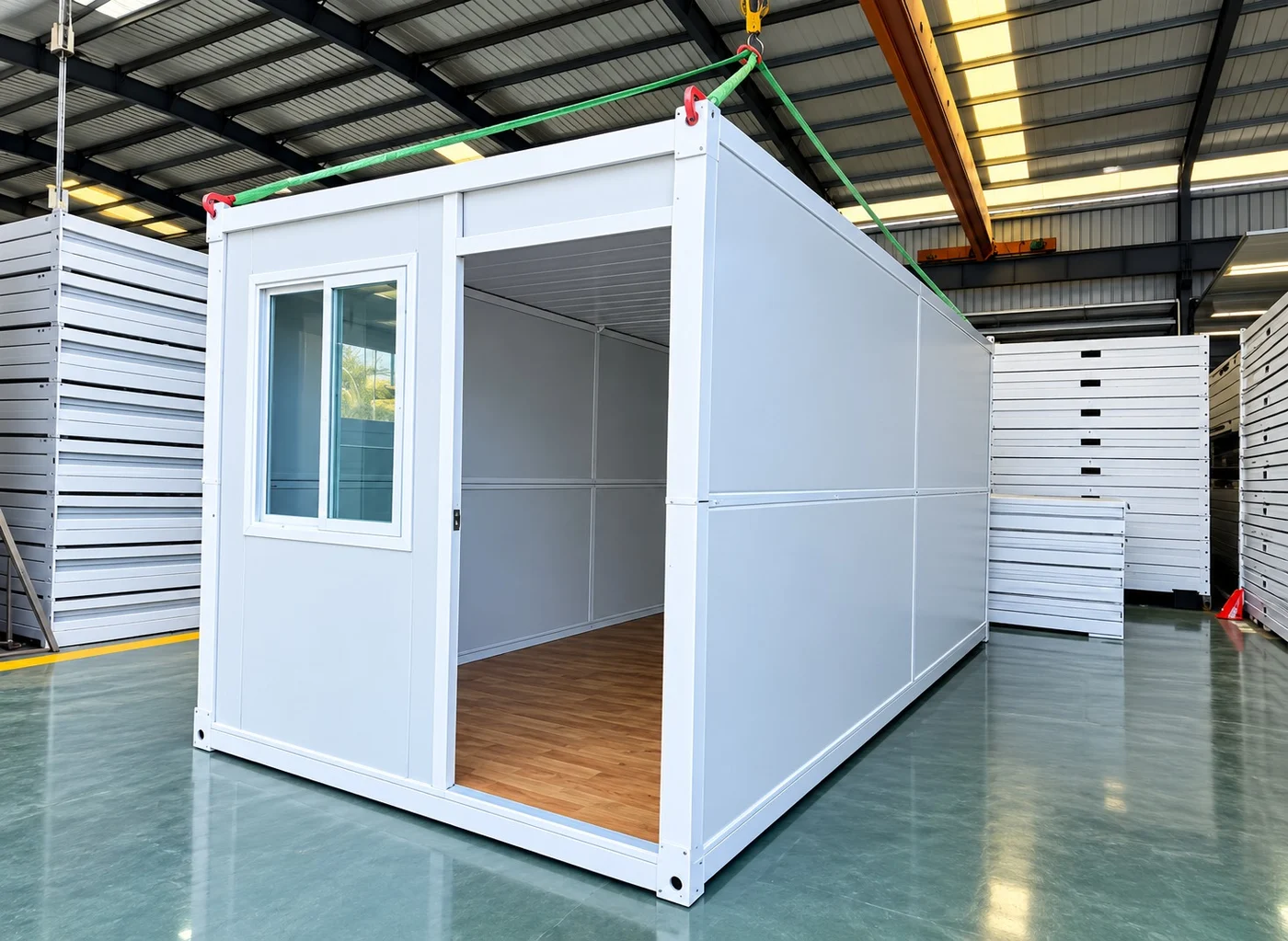

- Size: 20 ft × 8 ft
- Body: PUF sandwich panel throughout — walls, roof and floor
- Weather proof and fire proof

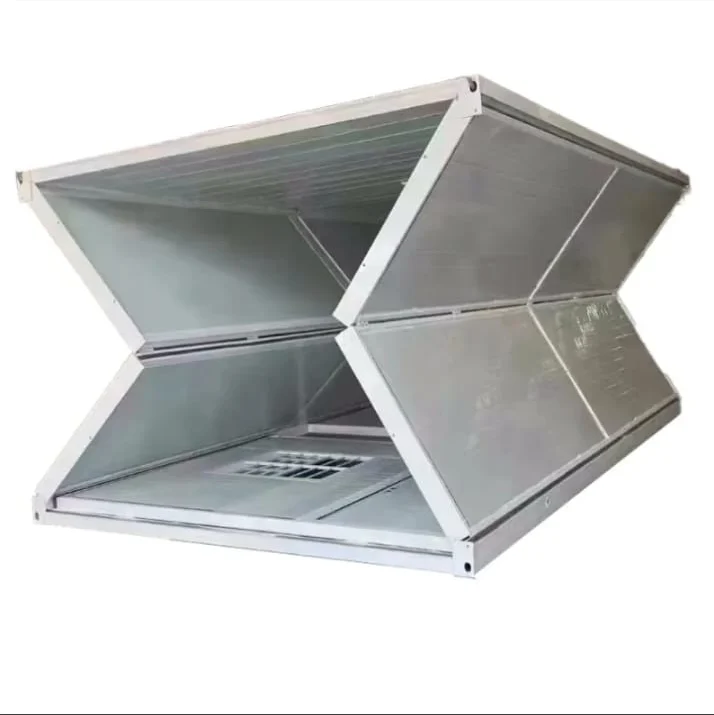

- Fully foldable — fold it down, move it, open it again at the next site
- Service life: 20 to 30 years
Why a folding cabin
A normal cabin travels as one full box and takes a full trailer. A folding cabin travels flat, so transport costs less and site access is far easier. When the project ends, you fold it and take it to the next site instead of leaving it behind or selling it off.
Standard build specification
| Overall size | 20 ft × 8 ft |

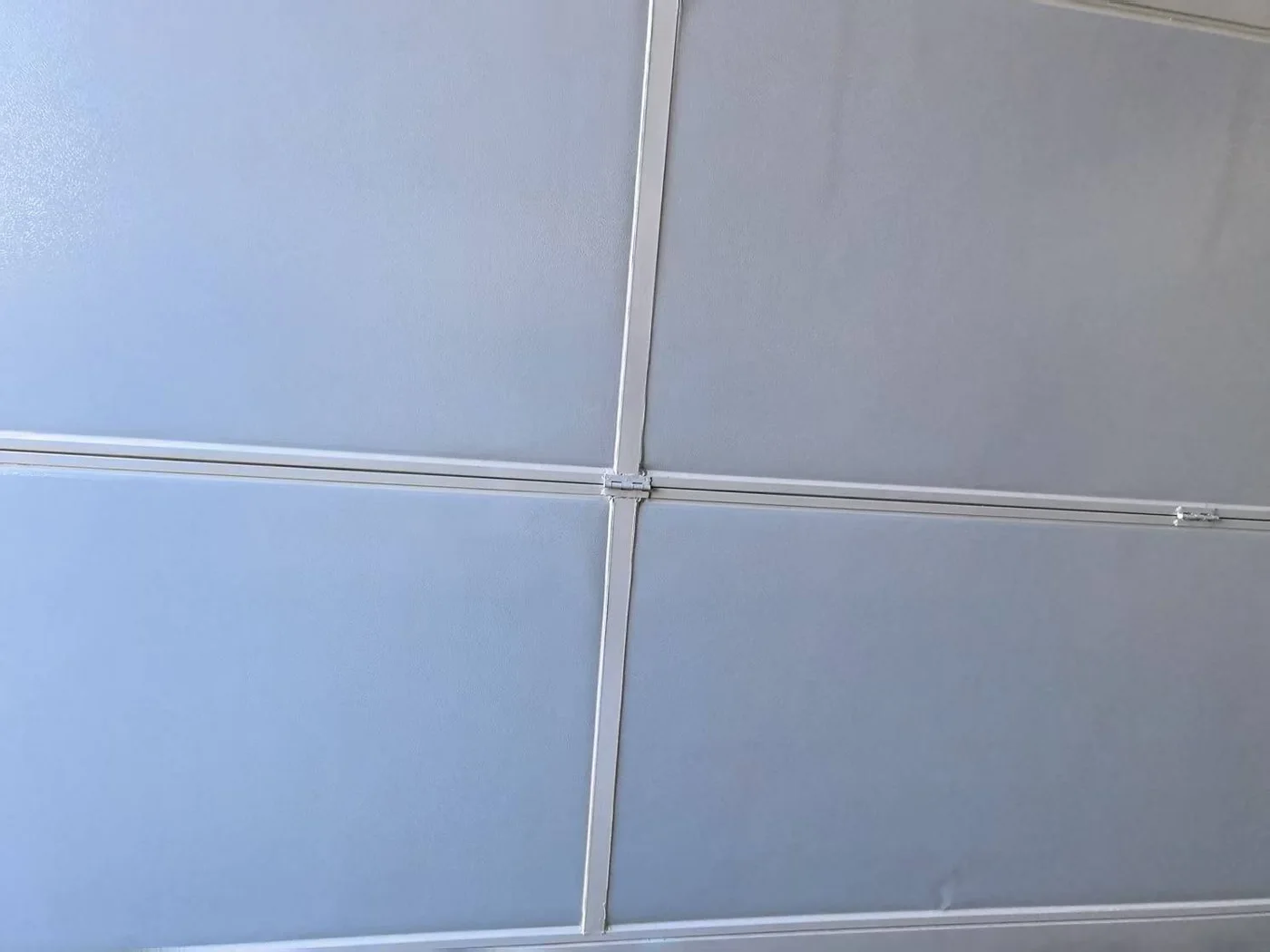

| Wall, roof and floor panel | 50 mm PUF sandwich panel, 0.40 mm pre-painted steel sheet on both faces |

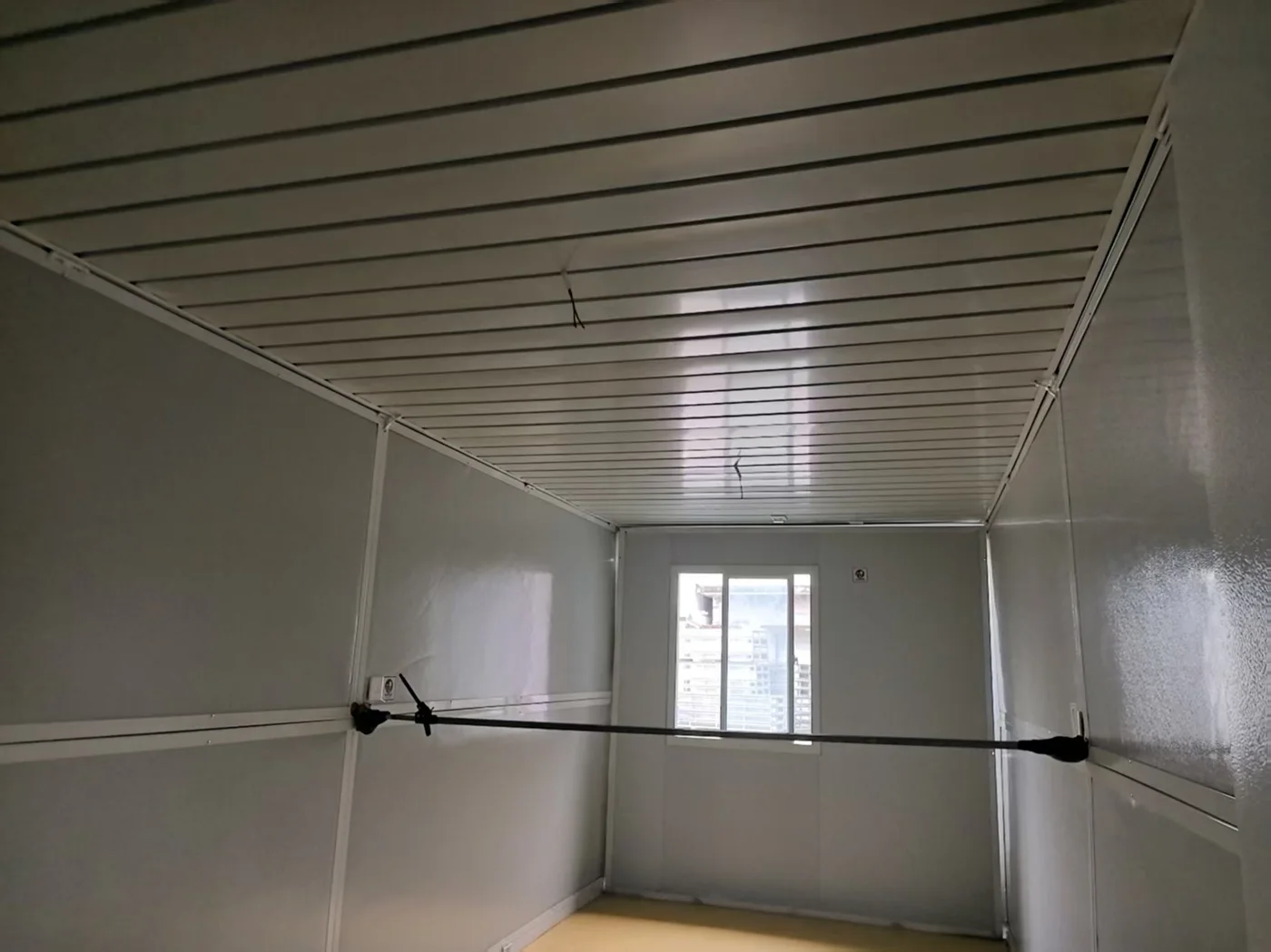

| Panel surface | Corrugated profile outside, smooth finish inside |
| Colour | White — exterior and interior |
| Top and bottom corner fittings | 45 mm |
| Column thickness | 3.0 mm |
| Longitudinal roof beam and floor beam | 3.0 mm |
| Transverse roof beam and floor beam | 2.5 mm |
| Floor finish | MGO board |
| Door | Steel security door — 1 no. |

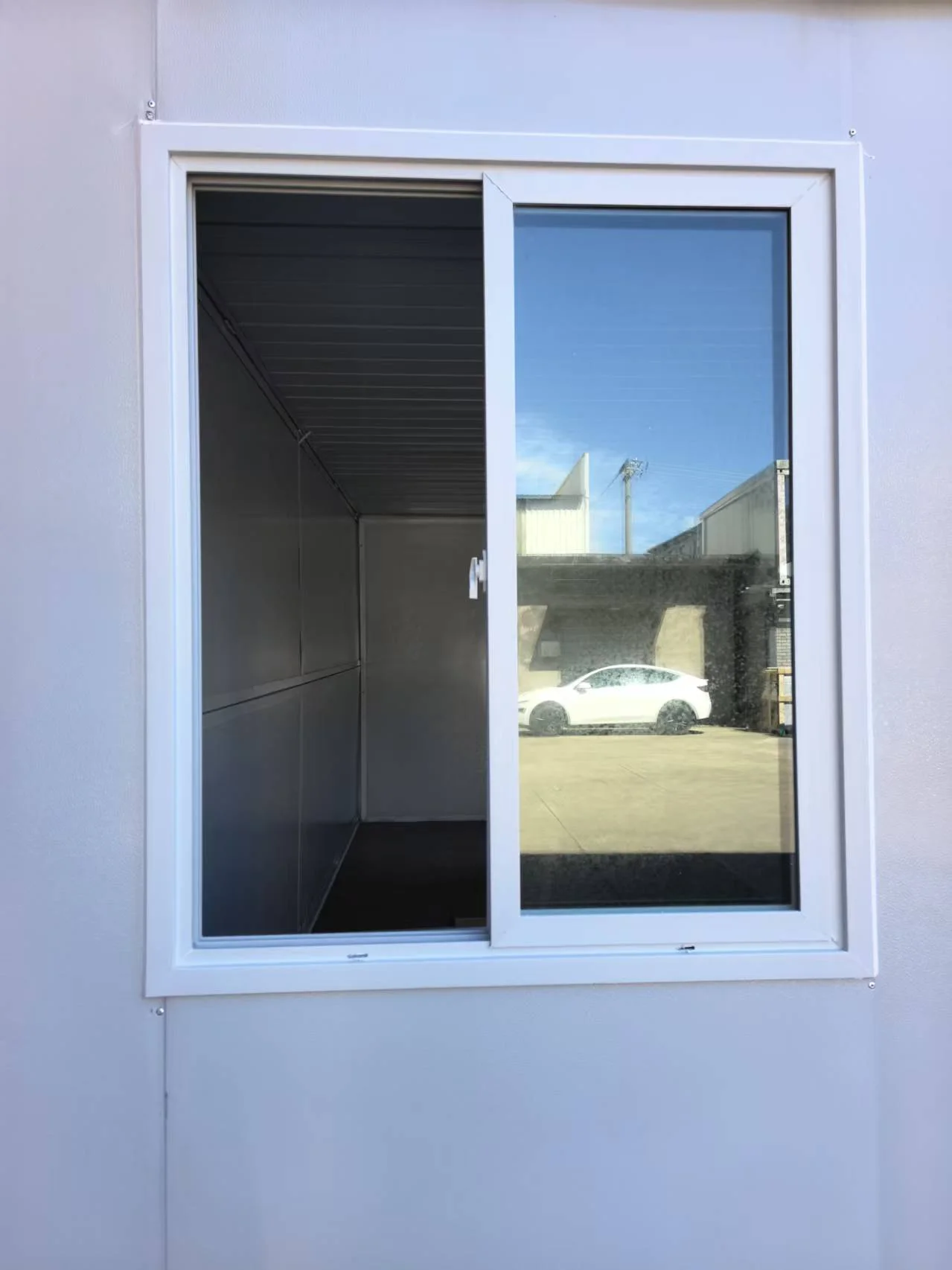

| Window | PVC sliding window with double glazing and wind-resistant shutter — 1.50 m × 1.20 m |
| Electrical fit-out | 3 power outlets, light switch and external power hook-up point, 2 ceiling lights inside |
| Service life | 20 to 30 years |

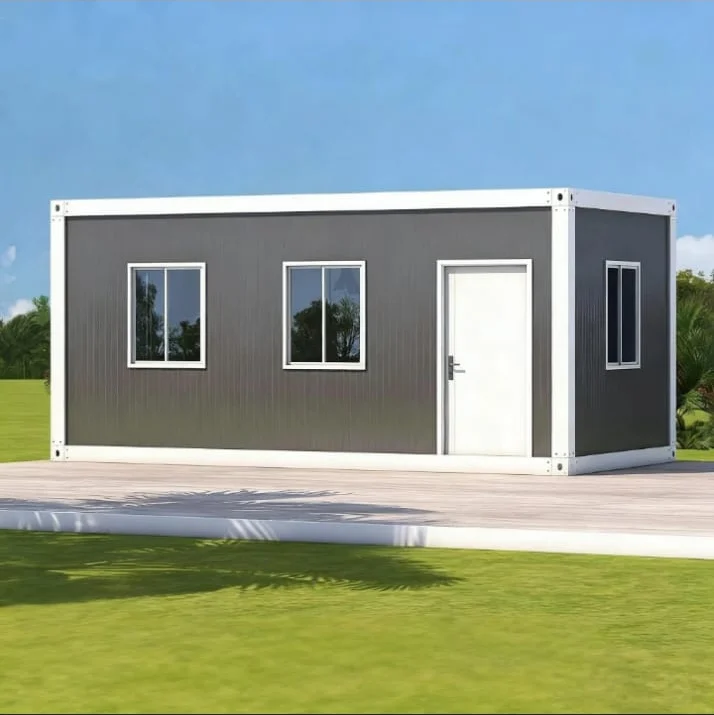

| Windows — as supplied | 2 windows on the long side wall and 1 window on the end wall beside the door |
| Power points | 3 power outlets on the side wall |
| Lights | 2 ceiling lights inside |
| External connection | Power hook-up point and light switch on the end wall |
Every cabin is built to this standard specification. Extra windows, extra power points, air-conditioner provision or an attached toilet can be added on request — tell us what you need when you ask for the quote.
Price and delivery
- Rs. 5,99,000 per cabin — final, non-negotiable
- GST extra
- Transport extra
- Delivery within 45 days of a confirmed order
New to folding units? Read our guide: collapsible container house in India — price, specs and how it folds.
Order it
Call +91 98676 48337 or use the Get Quote button below. Tell us the delivery city and how many units you need, and we will confirm transport separately.
